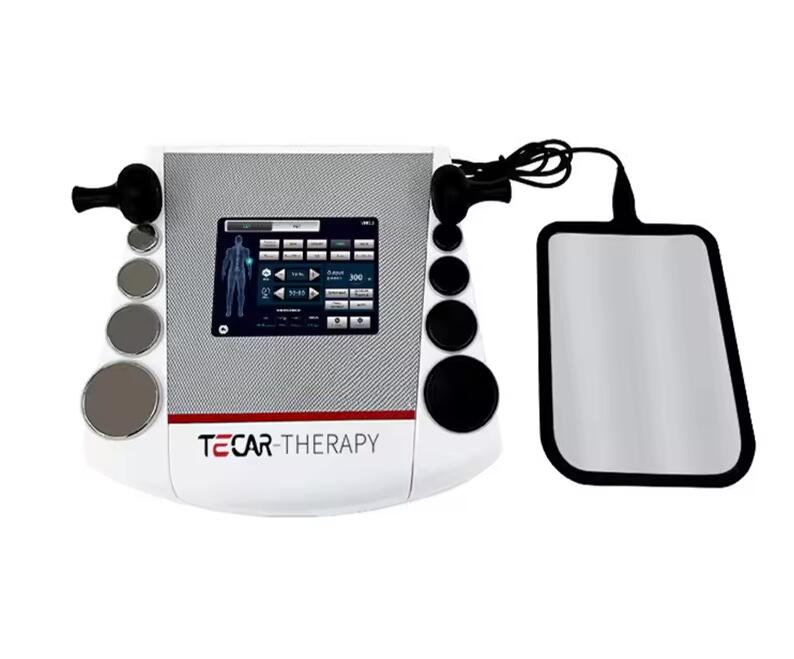

Theory of the RET RF & CET RF
Capacitive Electric Transfer (CET) is a method that allows the RF electrical current to be transferred
"by capacity" (principle of the electrical capacitor) to the patient's body via a moveable external application
electrode. This is covered with an insulating film which acts as dielectric and the body acts as a second
plate of the capacitor. A return plate closes the circuit. The electric circulation through the resistive medium
formed by the live tissues increases its temperature.
RET (Resistive Electric Transfer) Targeted Radiofrequency Diathermy Therapy Device works deeper
targeted tissue than current superficial diathermy therapy devices.It transfers high frequency electromagnetic
energy through the tissues of the body creating selective tissue hyperthermy,it can decompose body fatty cell
,so as to loss weight.
CET Capacitive Electric Transfer
√ Insulated Electrode
√ Current to be transferred by Capacity to patient
√ Go into 3~5cm depth of skin
√ Effective for skin lifting, pain relief
RET Resistive Electric Transfer
√ Stainless Steel Electrode (not Insulated)
√ Current to be transferred directly to the patient
√ Go into 9~12cm depth of skin
√ Effective for the subcutaneous fat
Application :
- Face and neck lifting & remodelling
- Tightening and lifting flaccid areas of the face
- Reduces wrinkles
- Lift sagging skin
- Enhances luminosity of the skin
- Fat reduction
- Body remodelling
- Cellulite treatment and skin partial reconstruction
- Increase collagen level
- Tighten loose skin
- Muscle relaxation,edema reduction,pain relief
tip material:
CET: Stainless steel
RET: Stainless steel plated environmentally friendly insulation
Specification :
Technology |
RET RF & CET RF 448k tecar rf |
Max output power |
200W |
Carrier Frequency |
1Mhz |
Intensity |
448KHZ |
Out Modes |
Round Electodes / Rectangle Type |
Treatment timer |
0-60minutes |
Safety Device |
Zero Start , Safety Switch |
